Op Victron professional is veel informatie te vinden over de verschillende firmware nummers voor de verschillende modellen.
Je kunt hier de informatie Vinden

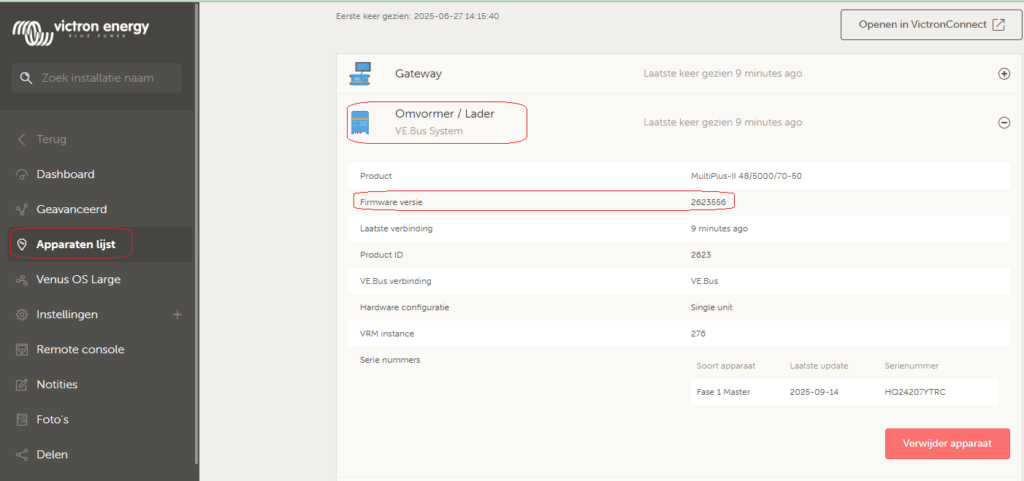

Je kunt jou multiplus model vinden oa in de VRM.
De eerste vier cijfers geven het model nummer aan, in mijn geval: “2623”.
556 is het firmware versie nummer.
Hieronder de lijst met de verschillende Multiplus-II nummers:
Old microprocessor 230VAC:
1906 MultiPlus Compact 12/1600/70-16
1907 MultiPlus Compact 12/1200/50-16
1908 MultiPlus Compact 12/2000/80-30
1909 MultiPlus 12/3000/120-16
1910 MultiPlus 24/3000/70-50
1911 MultiPlus 24/3000/70-30
1912 MultiPlus 24/3000/70-16
1913 Phoenix Multi Compact 24/800/16-16
1916 MultiPlus Compact 24/1600/40-16
1917 MultiPlus Compact 24/1200/25-16
1918 MultiPlus Compact 24/2000/50-30
1920 MultiPlus 48/3000/35-50
1921 MultiPlus 48/3000/35-30
1922 MultiPlus 48/3000/35-16
Old microprocessor 120VAC:
2002 MultiPlus 12/3000/120-50 120V
2008 MultiPlus Compact 12/2000/80-50 120V
2009 Phoenix MultiPlus 120 12V/3000
2012 MultiPlus 24/3000/70-50 120V
2018 MultiPlus Compact 24/2000/50-50 120V
2062 MultiPlus Compact 12/2000/80-50(30)-120/240V
2072 MultiPlus Compact 24/2000/50-50(30)-120/240
New microprocessor 230VAC:
2600 MultiPlus 12/3000/120-50
2604 MultiPlus-II 12/5000/220-50
2605 MultiPlus-II 12/3000/120-32
2606 MultiPlus Compact 12/1600/70-16
2607 MultiPlus Compact 12/1200/50-16
2608 MultiPlus Compact 12/2000/80-30
2609 MultiPlus 12/3000/120-16
2610 MultiPlus 24/3000/70-50 (+EasySolar)
2611 MultiPlus-II 24/3000/70-32 (+ EasySolar)
2612 MultiPlus 24/3000/70-16
2613 Phoenix Multi Compact 24/800/16-16
2614 MultiPlus 24/5000/120-100
2615 MultiPlus-II 24/5000/120-50 (+ EasySolar)
2616 MultiPlus Compact 24/1600/40-16
2617 MultiPlus Compact 24/1200/25-16
2618 MultiPlus Compact 24/2000/50-30
2619 MultiPlus-II 48/15000/200-100
2620 MultiPlus 48/3000/35-50 (+EasySolar)
2621 MultiPlus-II 48/8000/110-100
2622 MultiPlus 48/3000/35-16
2623 MultiPlus-II 48/5000/70-50 (ACOut2 switchable etc) {Deze zit in mijn systeem}
2624 MultiPlus 48/5000/70-100 (+EasySolar)
2625 MultiPlus-II 48/3000/35-32 (external sensor max 32A)
2626 MultiPlus-II 48/5000/70-50
2627 MultiPlus-II 48/10000/140-100
2628 MultiPlus-II 48/3000/35-32 (external sensor max 50A)
2629 MultiPlus-II 48/3000/35-32 (+EasySolar)
2649 MultiPlus 24/5000/120-50
2659 MultiPlus 48/5000/70-50
2660 Multi 12/500/20-16
2661 MultiPlus 12/800/35-16
2662 MultiPlus 12/1200/50-16
2663 MultiPlus 12/1600/70-16
2664 MultiPlus 12/2000/80-32
2665 Multi 24/500/10-16
2666 MultiPlus 24/800/16-16
2667 MultiPlus 24/1200/25-16
2668 MultiPlus 24/1600/40-16
2669 MultiPlus 24/2000/50-32
2670 Multi 48/500/6-16
2671 MultiPlus 48/800/8-16
2672 MultiPlus 48/1200/13-16
2673 MultiPlus 48/1600/20-16
2674 MultiPlus 48/2000/25-32
2680 MultiGrid 12/3000/120-50
2681 (reserved)
2685 MultiGrid 24/3000/70-50
2689 MultiPlus 48/15000/200-100
2690 MultiGrid 48/3000/35-50
2699 MultiPlus-II 48/3000/35-32 HIPLess (ACOut2 switchable etc) (+EasySolar)
New microprocessor 120VAC:
2702 MultiPlus 12/3000/120-50 120V
2705 MultiPlus-II 12/3000/120-50 120V
2708 MultiPlus Compact 12/2000/80-50 120V
2711 MultiPlus-II 24/3000/70-50 120V
2712 MultiPlus 24/3000/70-50 120V
2715 MultiPlus-II 24/5000/120-95 120V (ACOut2 switchable etc)
2718 MultiPlus Compact 24/2000/50-50 120V
2723 MultiPlus-II 48/5000/70-95 120V (ACOut2 switchable etc)
2729 MultiPlus-II 48/3000/35-50 120V
2760 MultiPlus 12/500/20-16 120V
2764 MultiPlus 12/2000/80-50 120V
2769 MultiPlus 24/2000/50-50 120V
2774 MultiPlus 48/2000/25-50 120V
2775 MultiPlus-II 24/3000/70-50 2x120V
2776 Quattro-II 24/3000/70-2×50 2x120V
2780 MultiPlus-II 12/3000/120-50 2x120V
2781 Quattro-II 12/3000/120-2×50 2x120V
2799 Quattro 48/15000/200-2×100 277V

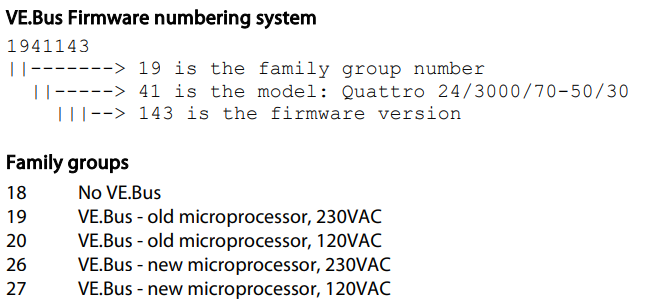

Uitleg over de verschillende firmware.
Het document, kun je hier Downloaden
Of dit Document
